ALL LATEST SonyEricsson TOOLS HERE

Post by .::kabir::. on Sun Nov 02, 2008 4:22 am

NOW YOU CAN FLASH YOUR SonyeEricsson WITH FREE TOOLS

YOU JUST NEED A DCU-60 CABLE (The original cable in phone package)




XS++ 3.1
http://www.4shared.com/file/32041400/2dffdc6/XS_online.html

Setool2lite 1.10
http://www.4shared.com/file/33508971/4c73bb89/setool2lite.html

Far Manager 1.07
http://www.4shared.com/file/27136179/48b0097b/FarManager170.html

sepf 10.0.51
http://www.4shared.com/file/27555816/87e090bb/SEFP_01051.html

gflash 206
http://www.4shared.com/file/32043297/e3fd6715/GFlash20b6.html

USB FLASH DRIVER FOR DCU-60 CABLE
http://www.4shared.com/file/27136649/66d24c3d/gg-setup.html


FLSAH FILE LINK
http://se-firmware.extra.hu/?path=./Firmware/ Embarassed


Last edited by Admin on Sun Nov 02, 2008 4:52 am; edited 1 time in total

_________________
regard
avatar
.::kabir::.
Admin
Admin

Male
Number of posts : 420
Age : 37
Registration date : 2008-08-26

View user profile http://kabirsoft.forumotion.com

Back to top Go down

Re: ALL LATEST SonyEricsson TOOLS HERE

Post by .::kabir::. on Sun Nov 02, 2008 4:23 am

setool2lite v1.11
http://www.fportal.uni.cc/e107_files...2LiteV1.11.rar

_________________
regard
avatar
.::kabir::.
Admin
Admin

Male
Number of posts : 420
Age : 37
Registration date : 2008-08-26

View user profile http://kabirsoft.forumotion.com

Back to top Go down

Re: ALL LATEST SonyEricsson TOOLS HERE

Post by .::kabir::. on Sun Nov 02, 2008 4:26 am

FLASH YOUR PHONE USING setool2lite

1. Back-up your GDFS file and write your GDFS

Click ?Read GDFS?, and then hold down the C button on your phone, and then plug in the cable. It will go to a point , where it says ?PROGRAMMING FLASH?. Once it says, Unplug the cable , then Unplug your phone, take the battery out, put the battery back in, hold down C, press the ?READY? button, then plug the phone back in, but after you plug it in, about 2 seconds after, release the C button. SETool 2 Lite will now read the GDFS and then it will say ?Getting GDFS Chunk? , and then it has fully read your GDFS, you can click ?Quit?.Take the battery out for about 20 seconds, and then put it back in.

"Write gdfs" will write gdfs to phone in BINARY format. File selected in "MISC. Box" will be assumed as gdfs in binary format.




Step 1: Turn off your phone and open setool2lite.
Step 2: Choose your phone model.
Step 3: Press the ADD button and select the Main&FS files (.mbn & .fbn). MAIN and FS can also be bin files. In fact the only important thing is that, they're unencrypted.
Step 4: Select the archive with the customization files (.zip).After it is recognized by the program , in the left side will appear informations about the customization.The archive(.zip) contain files from tpa/preset/custom.
Step 5: Press the FLASH button.
Step 6: Connect the usb cable while holding down the "c" button un your phone. Then wait for the process to finish.
Step 7: Disconnect your phone , get the battery out for 5 seconds , insert battery again and start up the phone.It will appear a screen with "Please Wait...", wait 1-2 minutes and then the phone will start normally.

_________________
regard
avatar
.::kabir::.
Admin
Admin

Male
Number of posts : 420
Age : 37
Registration date : 2008-08-26

View user profile http://kabirsoft.forumotion.com

Back to top Go down

Re: ALL LATEST SonyEricsson TOOLS HERE

Post by .::kabir::. on Sun Nov 02, 2008 4:30 am

Flashing Tutorial with XS++



Back Up GDFS/Restore GDFS

The GDFS contains the calibration data of your phone. Your phone won?t work if the GDFS is damaged. A defective GDFS is hard to fix, therefore you should always backup the GDFS of your phone before you do anything else.

1. Connect your phone while holding down the ?C? button.
2. Choose the ?GDFS? tab (in ?Configuration? on the bottom right)
3. Click ?Backup GDFS?
4. Store the GDFS file in a safe place ? it could safe your phone after a mistake!


Writing the GDFS back to your phone

If GDFS is damaged choose your backed up GDFS file (make sure you?ve choose the right one) in ?Restore GDFS? and click ?Write GDFS?.

NOTE: Every GDFS is unique, that means every phone has a different GDFS, even if it?s the same model. If you write the GDFS from another phone to your phone your phone won?t boot up. That?s because the IMEI stored in the new GDFS doesn?t match the IMEI in your OTP. Do NOT write any other GDFS to your phone.

Choosing the correct firmware

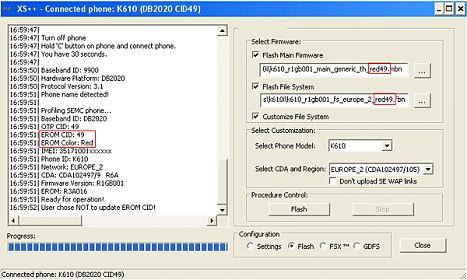

XS++ always shows you the EROM CID and the EROM Colour of your phone after connecting. You need to flash firmware matching that CID and Colour or your phone won?t work properly. If you?ve got a BROWN EROM you need to change it to a RED EROM before flashing red firmware to the phone.

Flashing the firmware to your phone





1. Connect your phone while holding down the ?C? button.
2. After your XS++ successfully recognized your phone it will switch to the ?Flash? tab automatically. Check ?Flash Main Firmware?, ?Flash File System? and ?Customize File System?.
3. Choose your firmware and CDA, then press the ?Flash? button.

Do this if the custpack you need is not implemented in XS++:
4. Download the custpack you need
5. Extract the files into the ?own_custpack? folder in XS++
NOTE: Make sure that the first folder in own_custpack is ?tpa?
6. Do steps 1. and 2.
7. Check ?Customize file system?
8. Select ?Own Custpack? in the ?Select phone Model? dropdown menu
9. Press the ?Flash? button

NOTE: Your phone will NOT work if you don?t customize the files system after flashing the FS. You will get an configuration error after trying to turn it on.

_________________
regard
avatar
.::kabir::.
Admin
Admin

Male
Number of posts : 420
Age : 37
Registration date : 2008-08-26

View user profile http://kabirsoft.forumotion.com

Back to top Go down

Re: ALL LATEST SonyEricsson TOOLS HERE

Post by .::kabir::. on Sun Nov 02, 2008 4:31 am

Another Flash File Link
http://download.gsm-free-page.de/ind...490c6a705c3336
